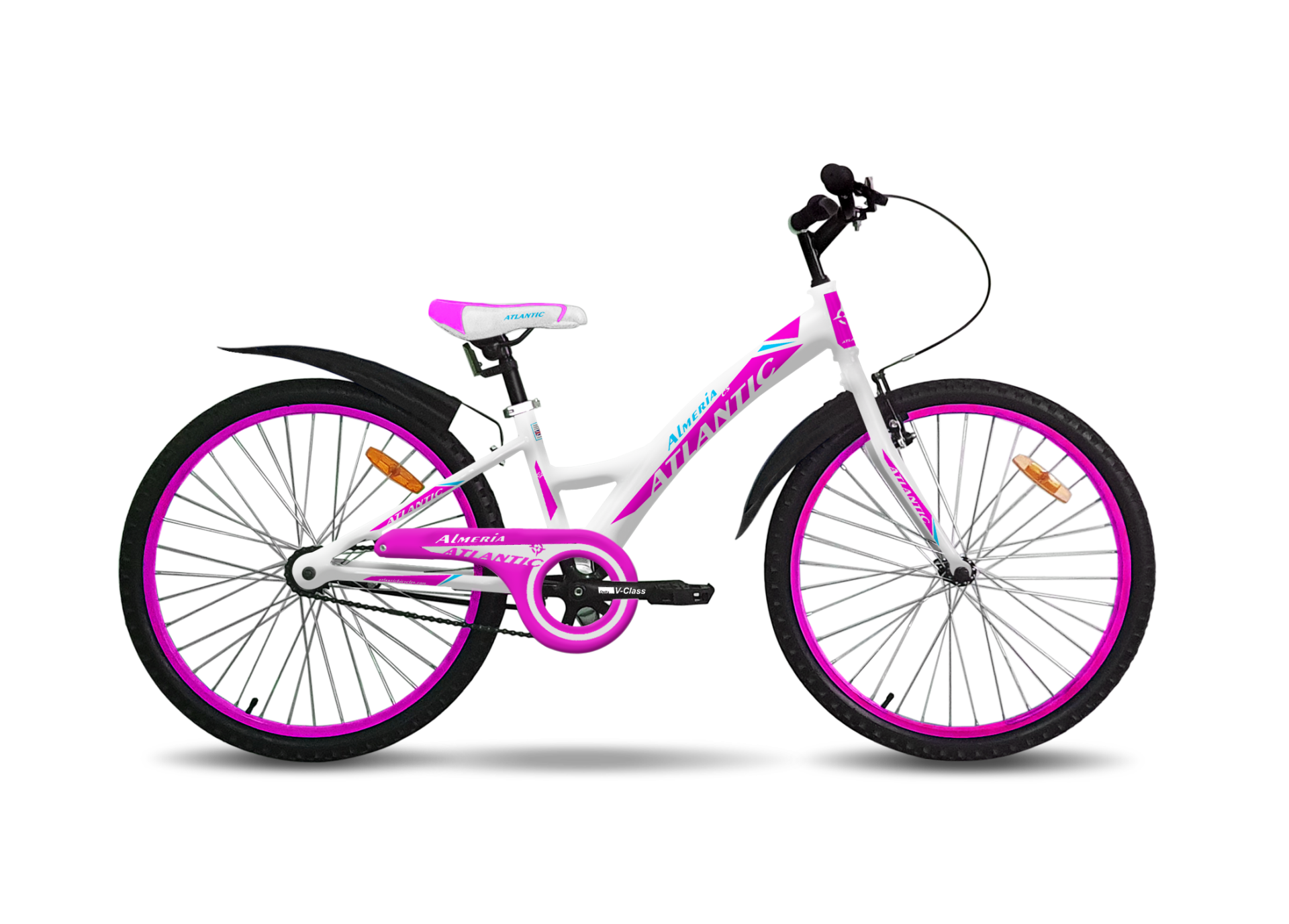

Almeria CS

  • Strong and durable steel frame with lowered top center tube
  • Rear foot brake (coaster brake) and front rim brake (V-Brake) with alloy brake levers
  • 24" wheels size
  • Pre-installed durable steel rear rack (for EQ version)
  • Equipped with plastic fenders and rear kick stand (for EQ version)

Description


The Atlantic Orbitron CS bike is designed for teens with a sporty steel frame that is durable, lightweight and corrosion resistant. The lowered top tube of the frame allows a smooth fit and easy jumping off the bike. The bike's well-balanced profile is resistant to stress and riding in a variety of road conditions. Designed for boys with a height of 110 to 140 cm.


The bike is equipped with two types of brakes: front v-brake and rear foot brake (coaster brake), which in terms of safety is the best combination for children.


Wheels with a radius of 24'' are good in acceleration, coasting, speed, as well as in braking.


The adjustable saddle height allows you to choose a comfortable, even fit.

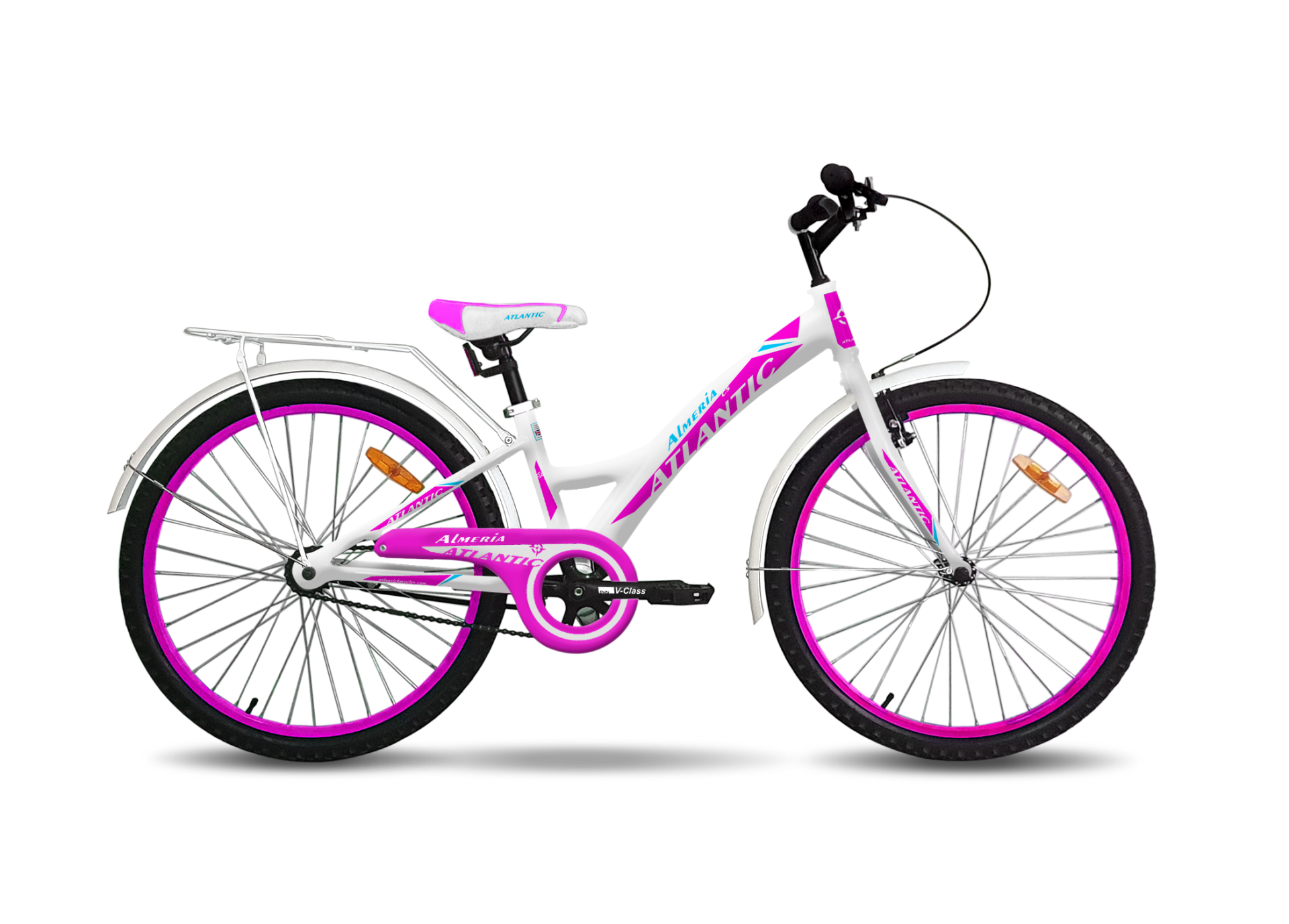

The complete set of the EQ bike version includes a pre-installed fenders and strong rear carrier made of steel, on which it is convenient to carry small loads.


Lightweight, branded attachments are productive in work, do not require complex settings and have a long service life.

Specification

Frame Atlantic Junior Wave Type, steel
Fork V-Class Rigid Junior, steel
Shifters -
Front derailleur -
Rear derailleur -
Freewheel V-Class City, 16t
Crankset V-Class Delta Kids, 40T, steel
Chain TEC
Bottom bracket Sealed cartridge, BSA
Brakes V-brake / rear coaster brake
Brake Levers Alloy
Hub (front) V-Class Delta, quick release, steel
Hub (rear) V-Class Coaster Brake, steel
Handlebars V-Class Delta, steel
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace JR
Headset Atlantic M1 Headset
Rims V-Class Zeta, double wall, alloy
Spokes Stainless Steel
Tires Ornate MTB, 24"x1.95"
Pedals V-Class FP-803, ball bearings
Grips V-Class Revo MTB
Rear carrier V-Class City, steel (for EQ version)
Mudguards Plastic / V-Class City, steel (for EQ version)
Approx weights in kg 12,4
Color White / Pink
Frame size XXS4

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

XXS4
A bb center to top of seattube 290
B top tube parallel 512
B* top tube horizontal 537
C chainstay 413
D headtube length 100
E head angle 71 °
F seat angle 72 °
H bb offset 25
K wheelbase 976
G seatpost diameter 31,8
