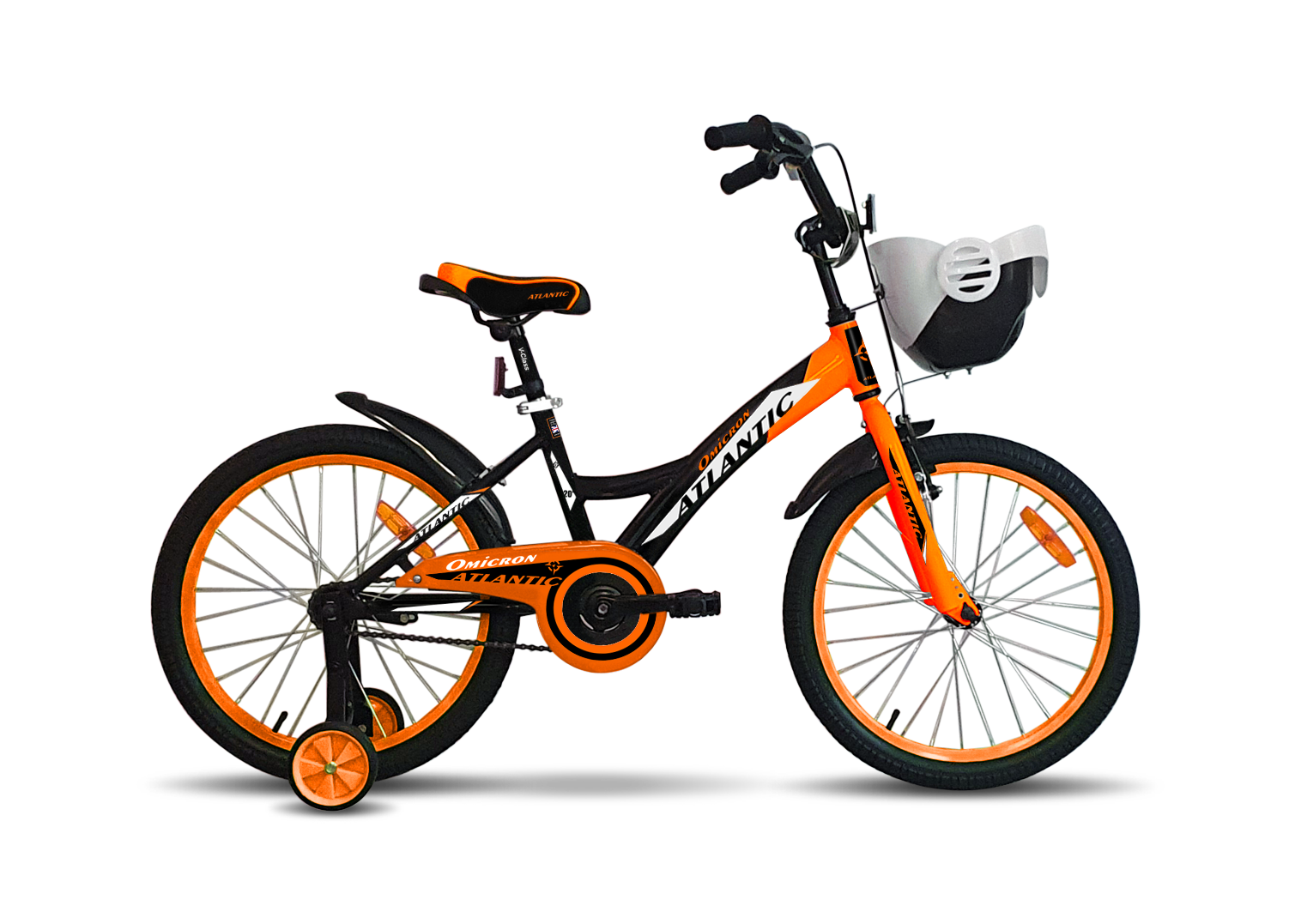

Omicron CX

  • Strong and reliable steel frame with lowered top center tube
  • Rear foot brake (coaster brake) and front rim brake (V-Brake) with alloy brake levers
  • 16", 20" wheels sizeο»Ώ

Description


In the production of children's bicycle Atlantic Omicron CS took into account all the features of children's riding, so its frame is made of durable, resistant to any kind of damage steel material. The big advantage is the lowered frame provide ease of jumping without clinging to it. The wide, comfortable saddle is adjustable in height and reinforced with an additional frame.


The brake system is easy to use and consists of two types of brakes: rear coaster brake and front caliper brake with lover on the handlebar.


The diameter of the wheels is available in 16" and 20" inches, which allows you to choose a bike for a child of any height and complete with additional wheels for a safe ride.


Adjusting options allows you to adjust the height of the saddle and handlebar, so you can choose the most comfortable option for pedaling on a bicycle.


Simple and reliable bicycle components work together and guarantee durability. Additionally, the bike is equipped with rod protection, front basket for essentials.

Specification

Frame Atlantic Junior Wave Type, steel
Fork V-Class Rigid Junior, steel
Shifters -
Front derailleur -
Rear derailleur -
Freewheel V-Class City, 16t
Crankset V-Class Delta Kids, 40T, steel
Chain TEC
Bottom bracket Sealed cartridge, BSA
Brakes V-brake / rear coaster brake
Brake Levers Alloy
Hub (front) V-Class Delta, quick release, steel
Hub (rear) V-Class Coaster Brake, steel
Handlebars V-Class Delta Kids, steel
Stem V-Class Delta Kids, steel
Seatpost V-Class Delta, steel
Saddle V-Class Kids
Headset Atlantic M1 Headset
Rims V-Class Zeta, double wall, alloy
Spokes Stainless Steel
Tires Ornate MTB, 16"(20") x 2.125"
Pedals V-Class FP-803, ball bearings
Grips V-Class Revo MTB
Approx weights in kg 9,3
Color Lime / Black, Black / Orange
Frame size 16, 20

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

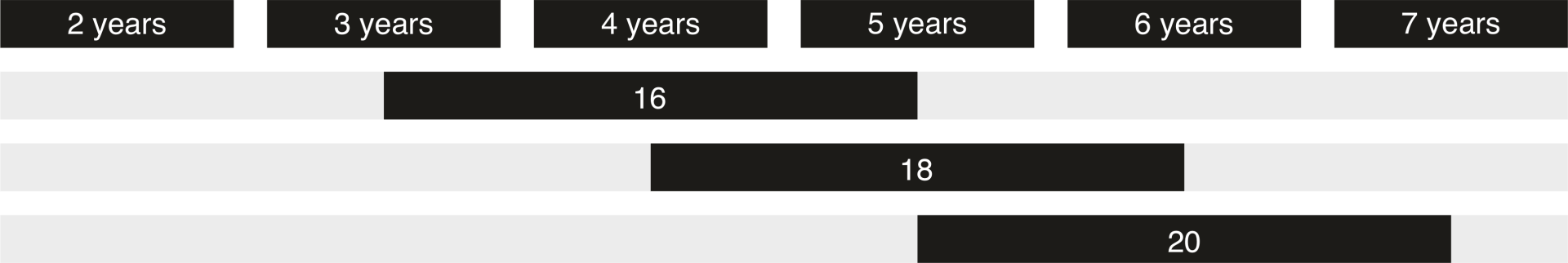

Size chart

Geometry

16" 18" 20"
A bb center to top of seattube 240 280 300
B top tube parallel 365 433 439
B* top tube horizontal - - -
C chainstay 303 345 378
D headtube length 100 100 100
E head angle 71 ° 72 ° 72 °
F seat angle 70 ° 71 ° 71 °
H bb offset -15 -10 0
K wheelbase 720 835 871
G seatpost diameter 31,8 31,8 31,8
