Arkon NX

  • Strong and durable alloy frame with Pro-Link system
  • V-Class Delta steel suspension fork
  • Mechanical disc brakes with alloy Levers
  • 3x7 speed reliable drive train
  • Index freewheel, 13-28T

Description

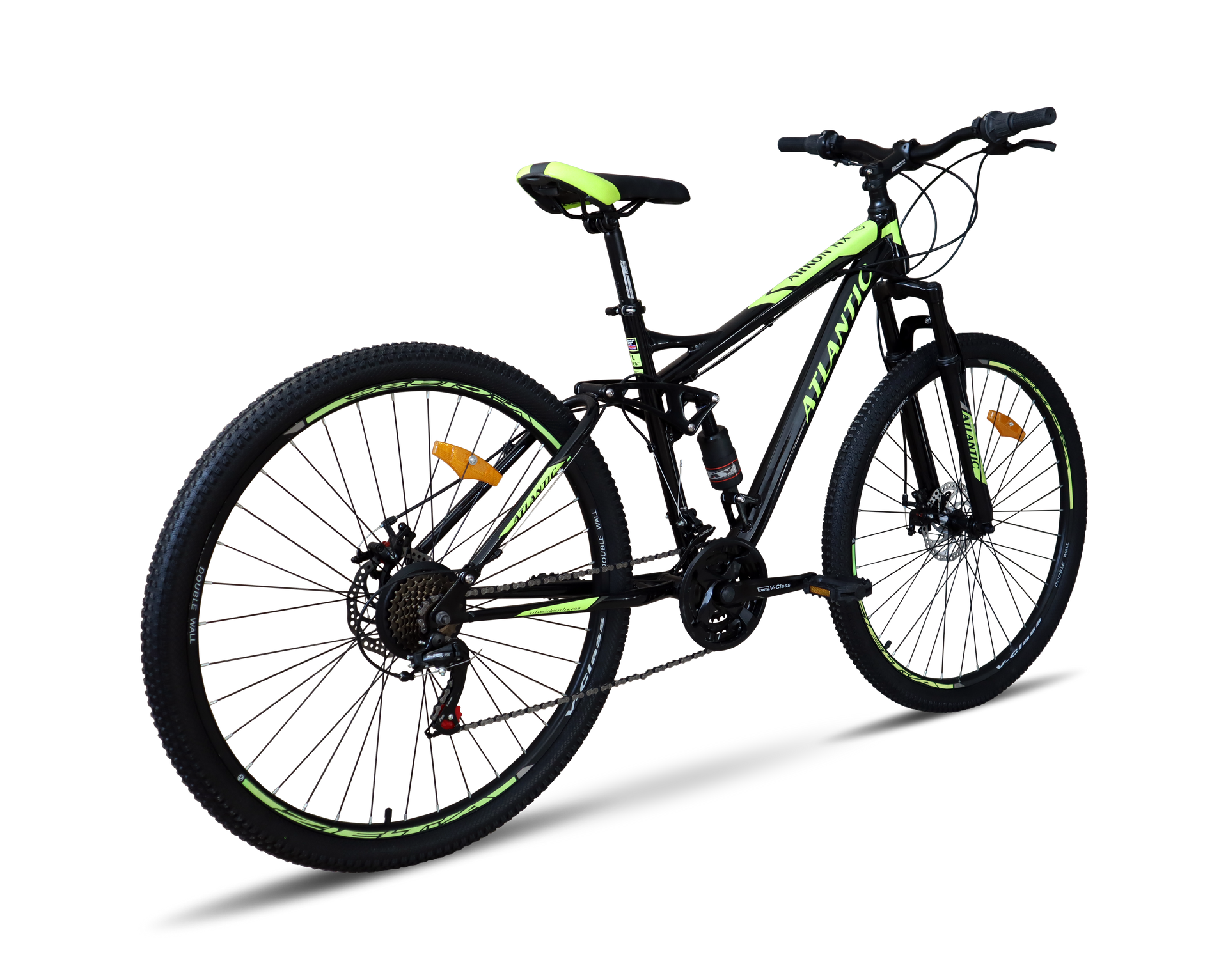

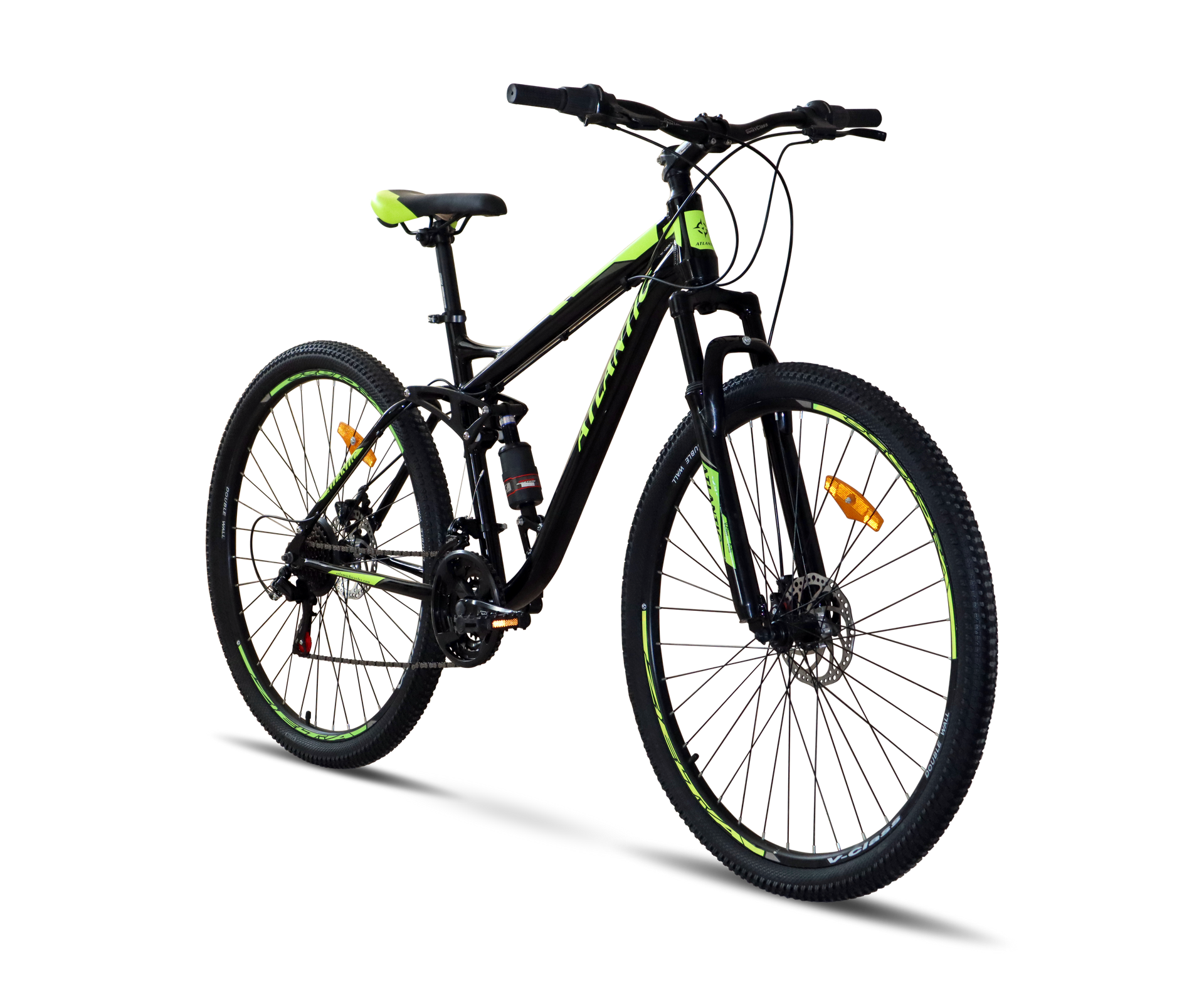

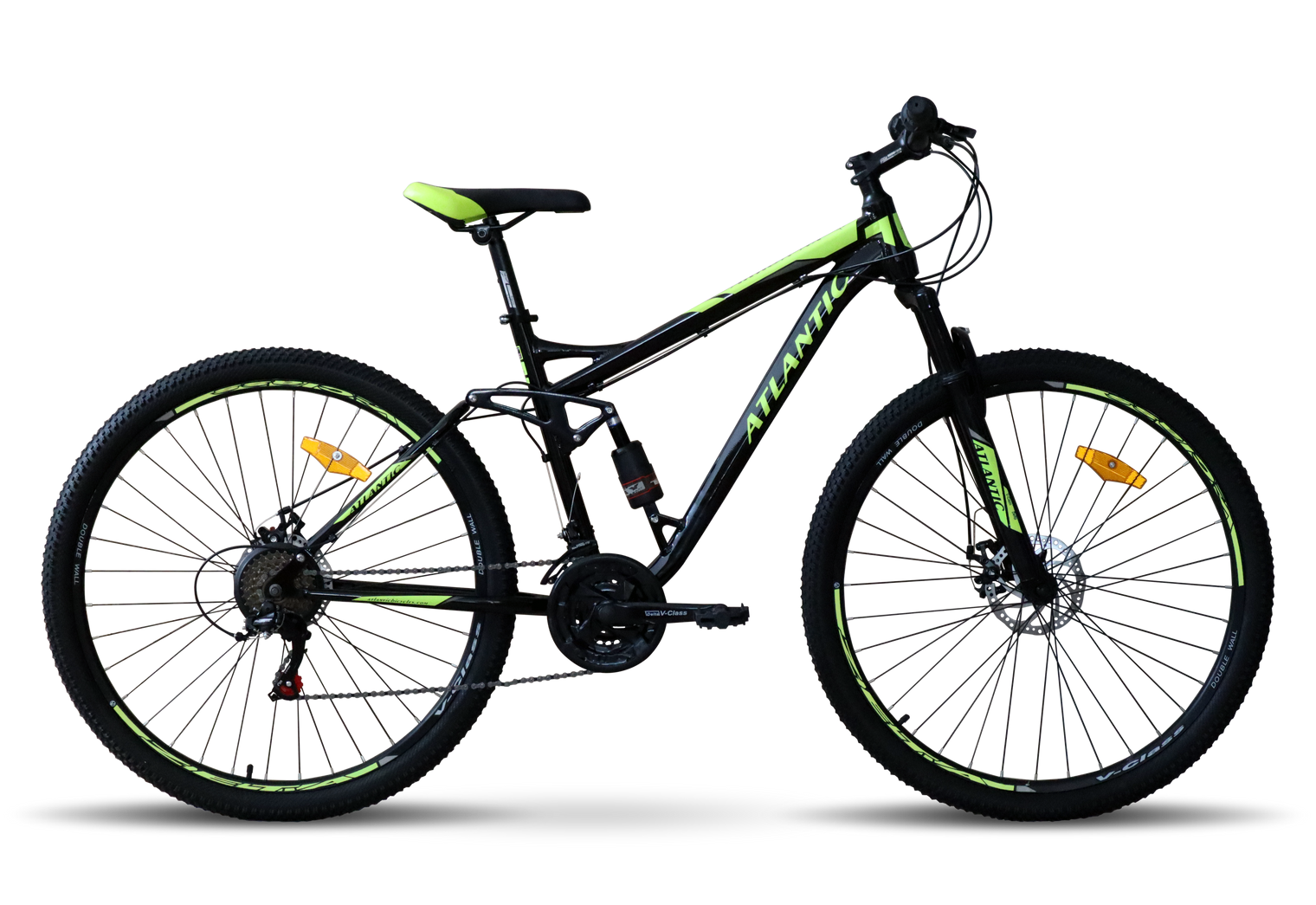

The Atlantic Arkon NX full-suspension mountain bike is made on the basis of a light and durable front alloy part and rear steel part frame with Pro-Link system that is resistant to corrosion and moisture.The lowered top tube of the frame forms a narrow skylight triangle, which allows for easy landing and jumping off the bike without any risk of injury.


The durable V-Class Delta steel suspension fork handles bumps and other bumps in the road surface.


V-Clas Zeta mechanical disc brakes with aluminum handlebars provide powerful stopping power and allow you to control any speed conditions on variable and dangerous road sections.


The powerful drivetrain includes 21 speeds (3x7) powered by proprietary Shimano Tourney equipment. Shimano RevoShift shifters, which rotate around the circumference of the steering wheel, provide precise and smooth gear shifting.


Classic 27,5'' and 29" wheels accelerate quickly, good for coasting and high-speed modes.


The seat tube height adjustment allows you to find the best fit for the rider, which is necessary for gambling and long riding on rough terrain.


Quality bike parts from the V-Class manufacturer do not require complex settings, are efficient in operation and have a long service life.

Specification

Frame Atlantic MTB Full-Suspension with Pro-Link system, front alloy + rear steel
Fork V-Class Delta, 80mm, steel
Rear shock Frank Kezhen KZ-880B, coil, 35mm, steel
Shifters Shimano Tourney SL-RV200, 3x7 speed
Front derailleur Shimano Tourney FD-TZ500, 3 speed
Rear derailleur Shimano Tourney RD-TZ500-GS, 7 speed
Cassette Tri Diamond, index, 13-28t
Crankset V-Class Delta pro, 24T/34T/42T, steel
Chain JX 50
Bottom bracket Sealed cartridge BSA
Brakes V-Class Zeta, mechanical disc brake, rotor: 160/160 mm
Brake Levers V-Class, mechanical disc brake, alloy
Hub (front) V-Class Delta, disk, quick release, steel
Hub (rear) V-Class Delta, disk, quick release, steel
Handlebars V-Class Delta, steel
Stem V-Class Zeta, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace
Headset Atlantic M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Stainless Steel
Tires MTB, 27,5" / 29" x 2.125"
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 16,5
Color Black / Grey / Lime
Frame size M7 / L9

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

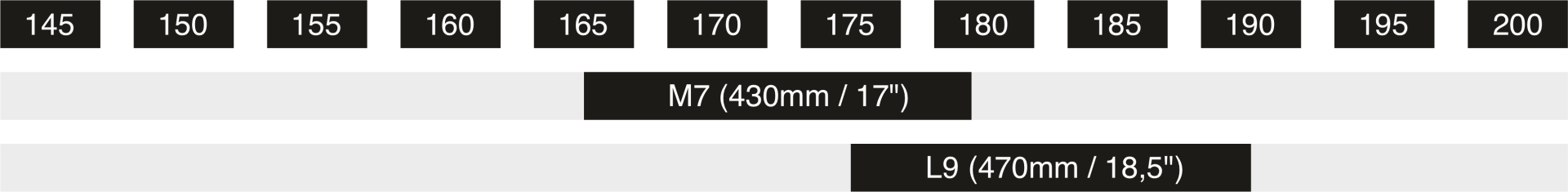

Size chart

Geometry

M7 L9
A bb center to top of seattube 430 470
B top tube parallel 557 574
B* top tube horizontal 605 610
C chainstay 485 500
D headtube length 120 120
E head angle 71 ° 71 °
F seat angle 79 ° 79 °
H bb offset 30 45
K wheelbase 1118,3 1146,4
G seatpost diameter 31,8 31,8
