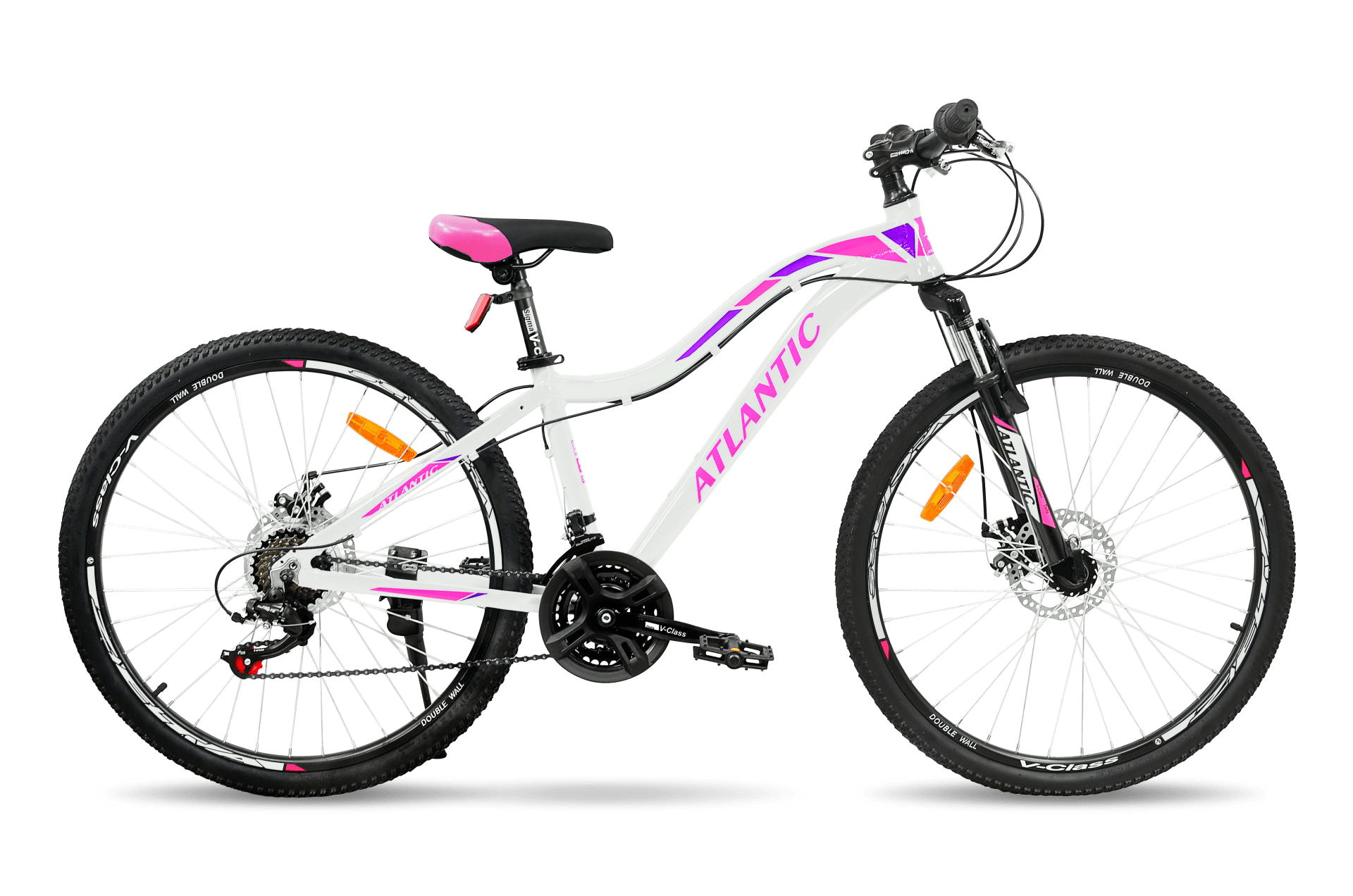

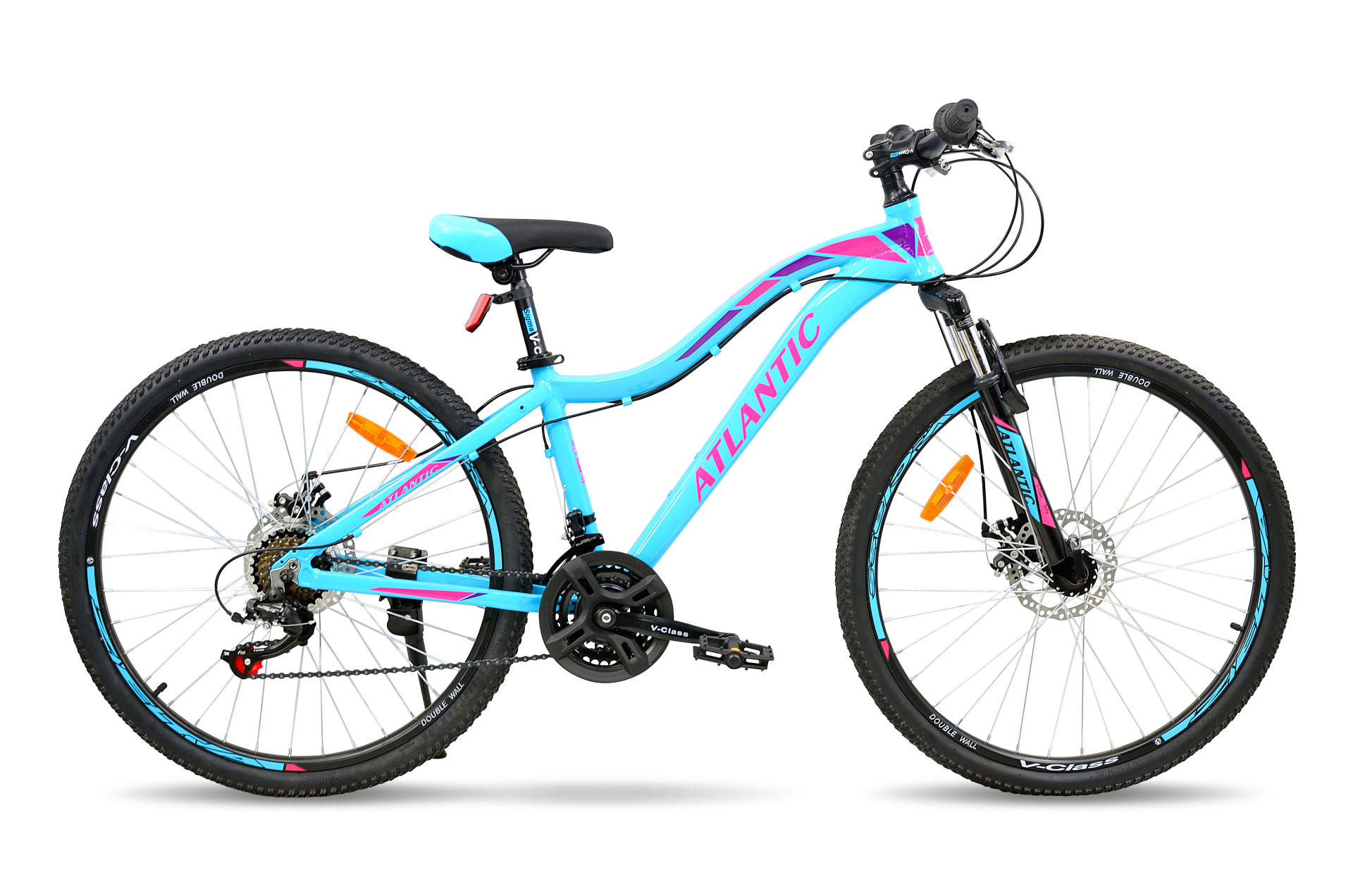

Dream NX

  • Strong and lightweight alloy feminine concept frame
  • V-Class Delta steel suspension fork
  • Mechanical disc brakes with alloy Levers
  • 3x7 speed reliable drive train
  • Index freewheel, 13-28T

Description


The Atlantic Dream NX mountain bike is designed with a durable and lightweight aluminum frame, which is the optimal material for a balance of quality and value. The central tube of the profile is significantly lowered, forming a narrow lumenal triangle for ease of landing and easy jumping off the bike.


The durable V-Class Delta suspension fork made of steel cushions the ride on uneven and convex road sections.


The mechanical disk brake system instantly responds to the force of the aluminum levers, reliably clamping the rotors of the front and rear wheels with pads, which allows the cyclist to safely overcome downhill descents, slopes and other difficult sections of the path.


The bike's drivetrain includes 21 speeds (3x7) and is powered by quality Shimano Tourney equipment. Shimano RevoShift shifters are responsible for precise and smooth gear shifting, rotating around the circumference of the steering wheel. The 26 '' wheels deliver fast acceleration, excellent roll-off and speed.


Adjusting the aluminum seat tube allows the rider to adjust to the most comfortable, level position.


Quality bike parts from the V-Class manufacturer do not require complex settings, are efficient in operation and have a long service life.

Specification

Frame Atlantic MTB Lite FMN, alloy
Fork V-Class Delta, 80mm, steel
Shifters Shimano Tourney SL-RV200, 3x7 speed
Front derailleur Shimano Tourney FD-TZ500, 3 speed
Rear derailleur Shimano Tourney RD-TZ500-GS, 7 speed
Cassette Tri Diamond, index, 13-28t
Crankset V-Class Delta pro, 24T/34T/42T, steel
Chain JX 50
Bottom bracket Sealed cartridge BSA
Brakes V-Class Zeta, mechanical disc brake, rotor: 160/160 mm
Brake Levers V-Class, mechanical disc brake, alloy
Hub (front) V-Class Delta, disk, quick release, steel
Hub (rear) V-Class Delta, disk, quick release, steel
Handlebars V-Class Delta, steel
Stem V-Class Zeta, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace
Headset Atlantic M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Stainless Steel
Tires MTB, 26" / 27,5" / 29" x 2.125"
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 15,2
Color Blue / Purple / Pink, White / Purple / Pink
Frame size XS6 / M7

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

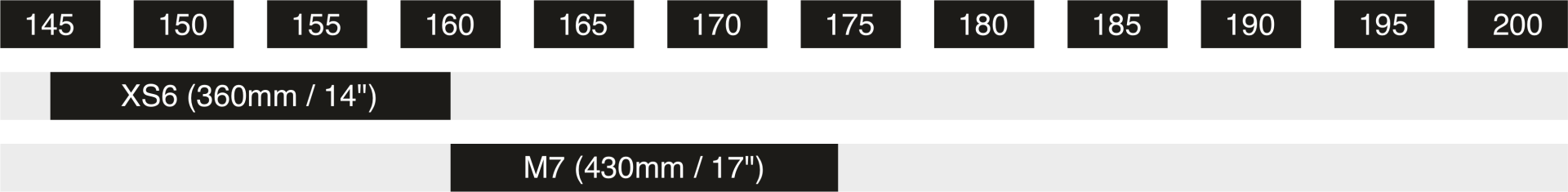

Size chart

Geometry

XS6 M7
A bb center to top of seattube 360 430
B top tube parallel 537 584
B* top tube horizontal 541 610
C chainstay 424 435
D headtube length 110 110
E head angle 68,5 ° 70 °
F seat angle 74,5 ° 73 °
H bb offset 45 42
K wheelbase 1065 1107
G seatpost diameter 30,4 30,4
