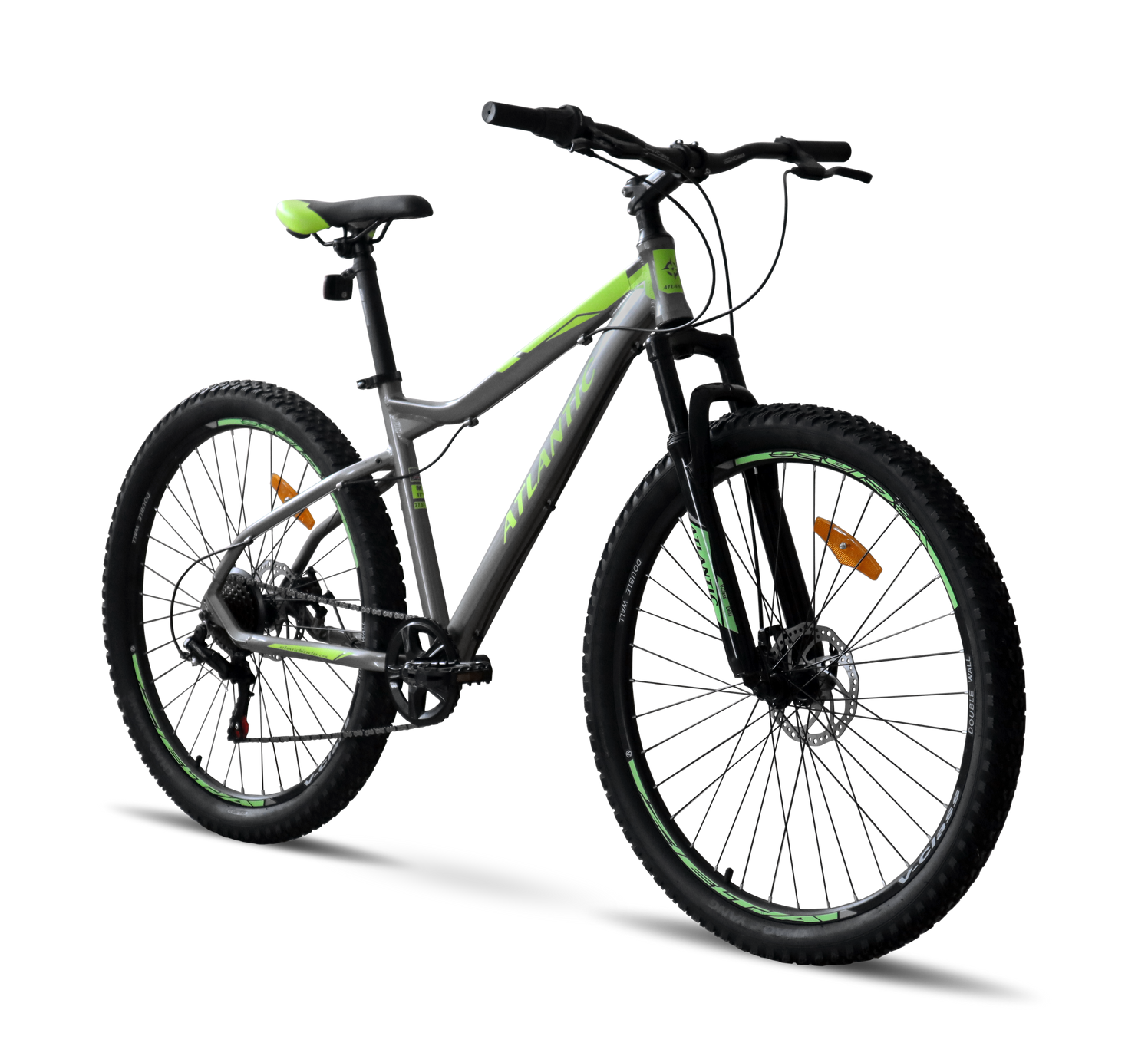

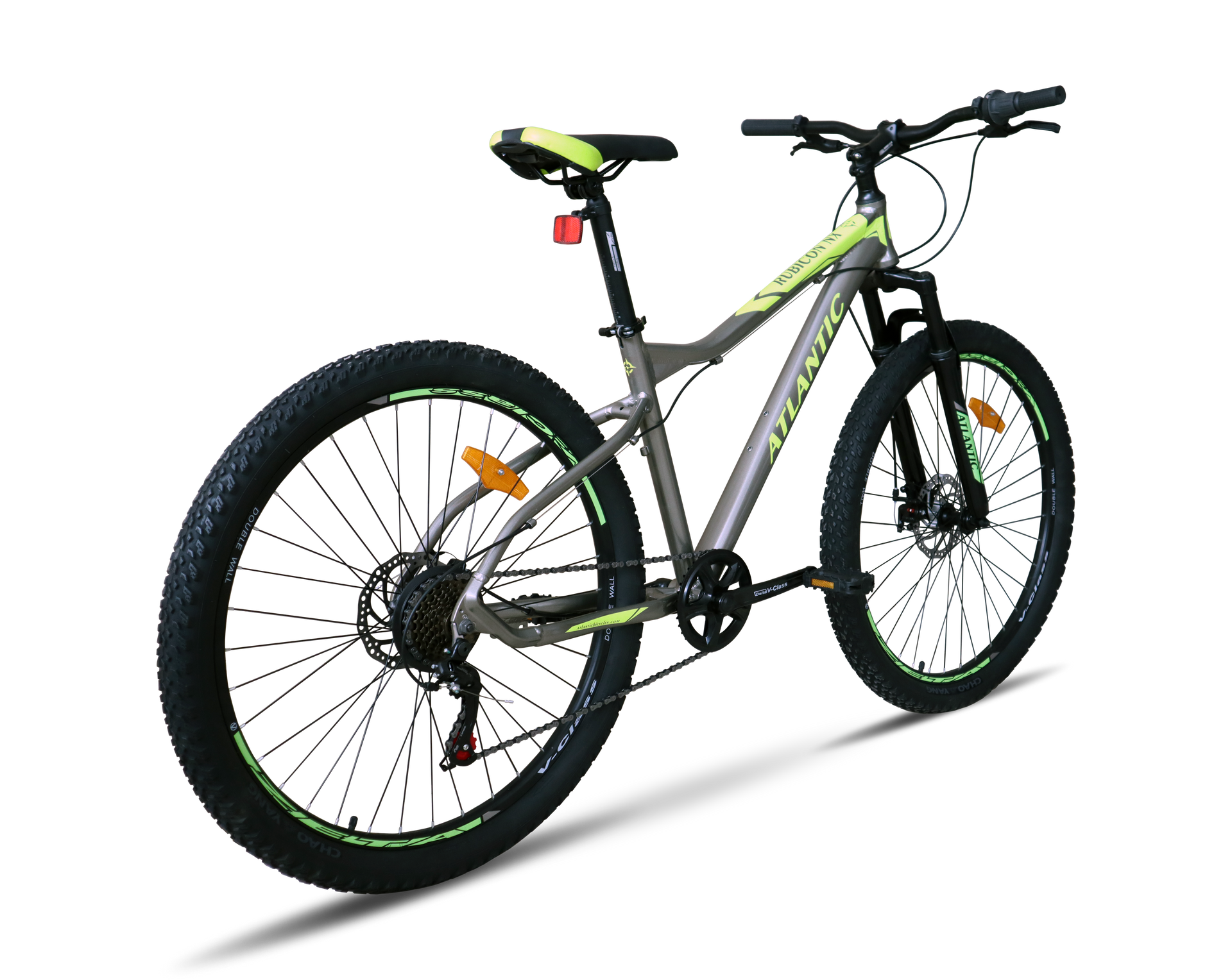

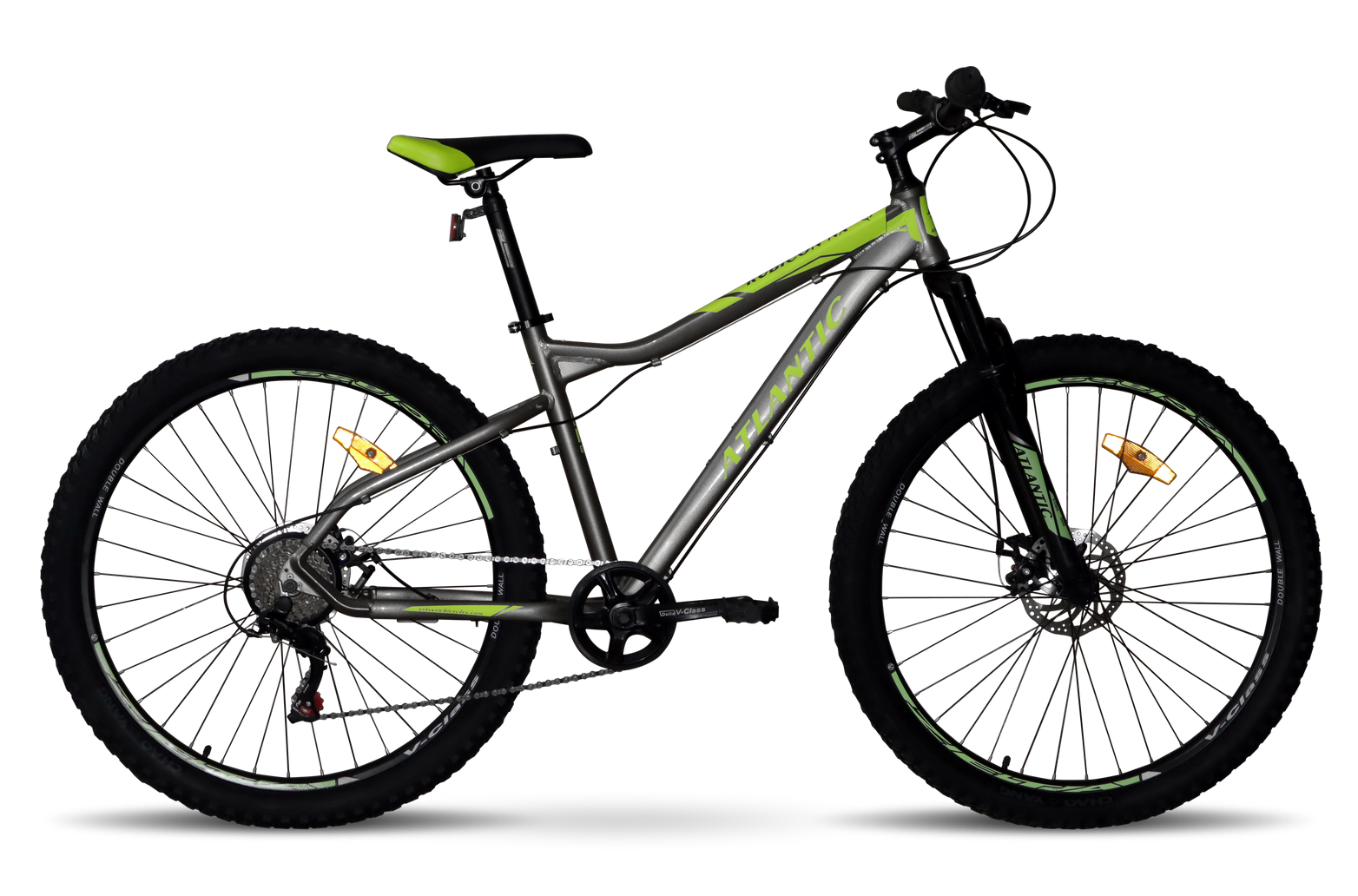

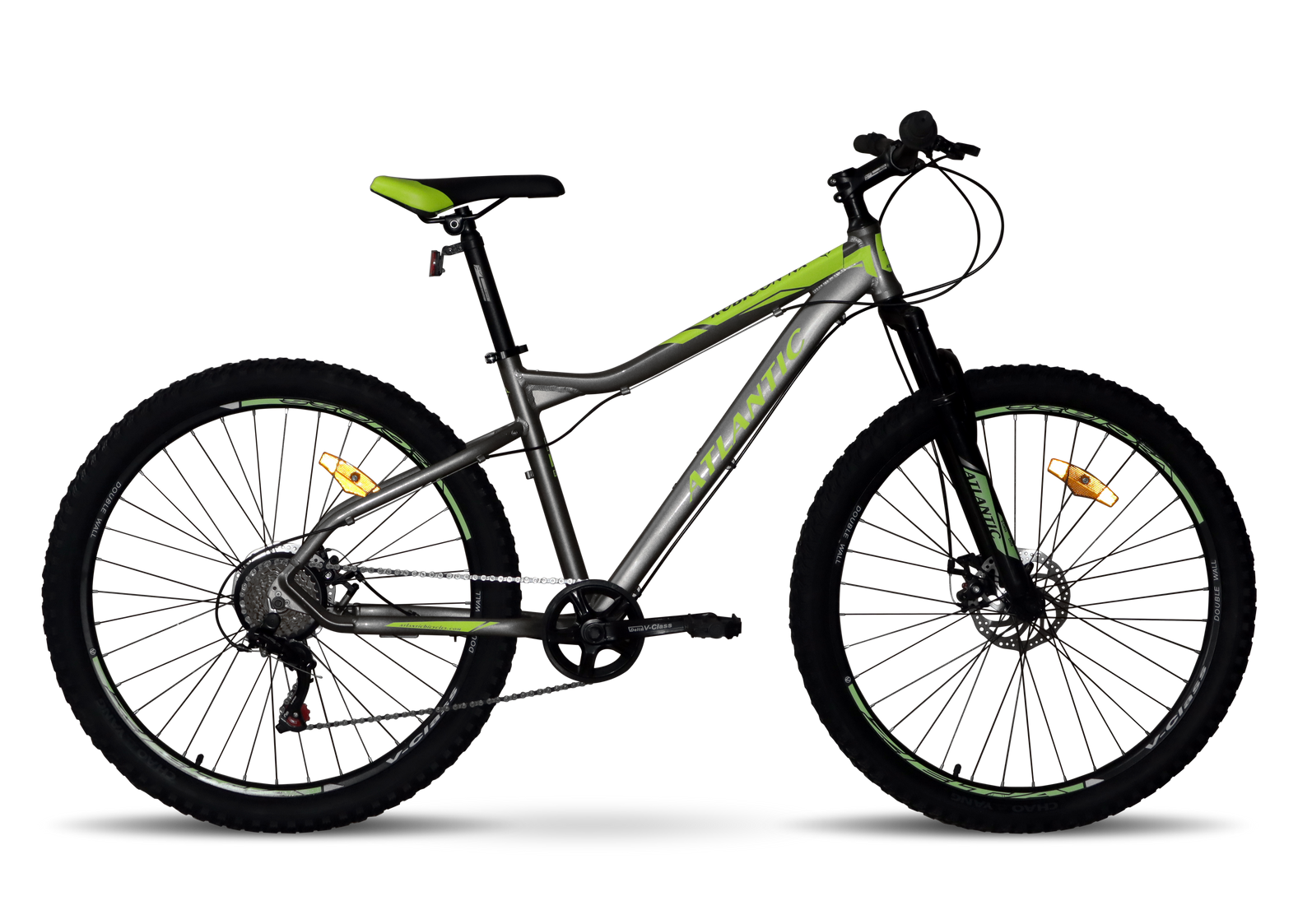

Rubicon NX

  • Strong and lightweight alloy frame with lowered top center tube
  • V-Class Delta steel suspension fork
  • Mechanical disc brakes with alloy Levers
  • 3x7 speed reliable drive train
  • Index freewheel, 13-28T
  • Plus tire size 27,5’’ x 2.80’’

Description


The Atlantic Rubicon NX mountain bike is made with a lightweight and durable aluminum frame that is resistant to corrosion and moisture. The lowered top tube of the frame forms a narrow skylight triangle, which allows for easy landing and jumping off the bike without any risk of injury.


The durable V-Class Delta steel suspension fork handles bumps and other bumps in the road surface.


V-Clas Zeta mechanical disc brakes with aluminum handlebars provide powerful stopping power and allow you to control any speed conditions on variable and dangerous road sections.


The powerful drivetrain includes 7 speeds (1x7) powered by proprietary Shimano Tourney equipment. Shimano RevoShift shifters, which rotate around the circumference of the steering wheel, provide precise and smooth gear shifting.


Extra wide wheel size of 27,5'' x 2.80" perfectly accelerate, keep the roll and speed


The seat tube height adjustment allows you to find the best fit for the rider, which is necessary for gambling and long riding on rough terrain.


Quality bike parts from the V-Class manufacturer do not require complex settings, are efficient in operation and have a long service life.

Specification

Frame Atlantic MTB ProLite Plus, alloy
Fork V-Class Delta, 80mm, steel
Shifters Shimano Tourney SL-RV200, 1x7 speed
Front derailleur N / A
Rear derailleur Shimano Tourney RD-TZ500-GS, 7 speed
Cassette Tri Diamond, index, 13-28t
Crankset V-Class Delta Pro, 36T, steel
Chain JX 50
Bottom bracket Sealed cartridge BSA
Brakes V-Class Zeta, mechanical disc brake, rotor: 160/160 mm
Brake Levers V-Class, mechanical disc brake, alloy
Hub (front) V-Class Delta, disk, quick release, steel
Hub (rear) V-Class Delta, disk, quick release, steel
Handlebars V-Class Delta, steel
Stem V-Class Zeta, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class MontRace
Headset Atlantic M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Stainless Steel
Tires Chaoyang, 27,5’’ x 2.80’’
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 16,2
Color Grey / Lime
Frame size M7 / L7

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

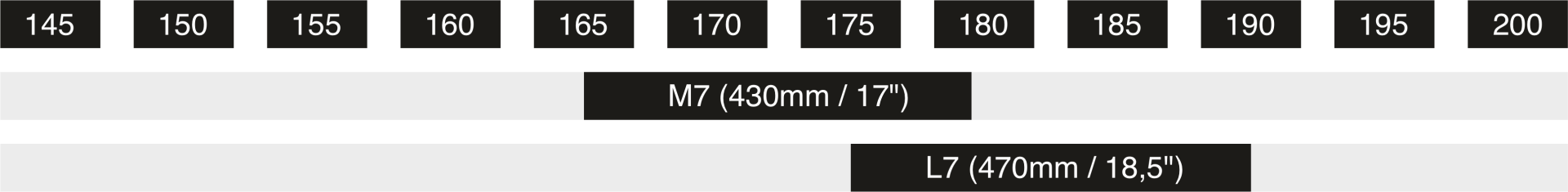

Size chart

Geometry

M7 L7
A bb center to top of seattube 430 470
B top tube parallel 582 579,2
B* top tube horizontal 605 610
C chainstay 455 455
D headtube length 110 110
E head angle 71 ° 71 °
F seat angle 79 ° 79 °
H bb offset 75 75
K wheelbase 1116 1119
G seatpost diameter 34,9 34,9
