Phaeton NX

  • Strong and lightweight alloy frame with lowered top center tube
  • Strong and durable V-Class steel rigid fork
  • Mechanical disc brakes with alloy Levers
  • Shimano Tourney 7 speed rear derailleur and 3 speed front derailleur with Shimano shifters
  • Index freewheel 13-28T, 7 Speed
  • 26"x4.00" wheels size
  • Equipped with rear kick stand

Description


Fatbike Atlantic Phaeton NX is designed with a lightweight and durable enlarged aluminum frame with protection against corrosion and moisture.


Smooth and light profile lines form an understated geometry with an elongated luminous triangle, which facilitates easy landing, easy pedaling and jumping off the bike.


Reliable Logan disc mechanical brakes are able to stop the bike at any time by clamping the pads of the rear and front wheels, controlling its dynamics when the force on the aluminum handles made on the handlebars.


The bike's 7 speed transmission (1x7) runs on branded components Shimano Tourney, which gives the cyclist a sufficient choice of gears for riding on city roads and off-road. The 7-speed Shimano Tourney rear derailleur works in conjunction with the Shimano RevoShift steering wheel.


Wide off-road 26''x4.00 wheels show themselves well both on off-road and flat sections of road.


Adjusting the height of the seat tube allows the rider to choose a comfortable fit for his height.


High-quality, lightweight components from the world's top manufacturer guarantee high performance, accuracy and have a long service life.ο»Ώ

Specification

Frame Atlantic MTB ProLite FAT, alloy
Fork V-Class Rigid FAT, steel
Shifters Shimano Tourney SL-RV200, 3x7 speed
Front derailleur Shimano Tourney FD-TZ500, 3 speed
Rear derailleur Shimano Tourney RD-TZ500-GS, 7 speed
Cassette Tri Diamond, index, 13-28t
Crankset V-Class Delta, 36T, steel
Chain JX 50
Bottom bracket Sealed cartridge
Brakes Logan, mechanical disc brake, rotor: 160/160 mm
Brake Levers Logan, alloy
Hub (front) V-Class Delta, disk, quick release, steel
Hub (rear) V-Class Delta, disk, quick release, steel
Handlebars V-Class Delta, steel
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma. alloy
Saddle V-Class MontRace
Headset Atlantic M2, A-Headset, semi-integrated
Rims V-Class Zeta, disc, double wall, alloy
Spokes Stainless Steel
Tires Compass FAT, 26"x4,00"
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Approx weights in kg 16,8
Color Black / Lime
Frame size M6

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

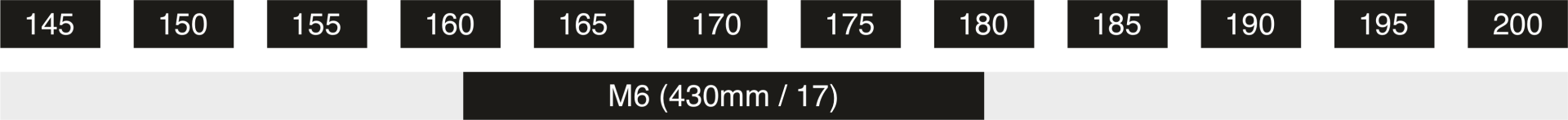

Size chart

Geometry

M6
A bb center to top of seattube 432
B top tube parallel -
B* top tube horizontal 605
C chainstay 460
D headtube length 115
E head angle 66,5 °
F seat angle 68,5 °
H bb offset 75
K wheelbase 1132
G seatpost diameter 34,9
