Madeira CS

  • Strong and durable steel monotube frame
  • Rigid city type steel fork
  • Alloy V-brakes with alloy leversο»Ώ
  • Pre-installed rear and front carriers

Description

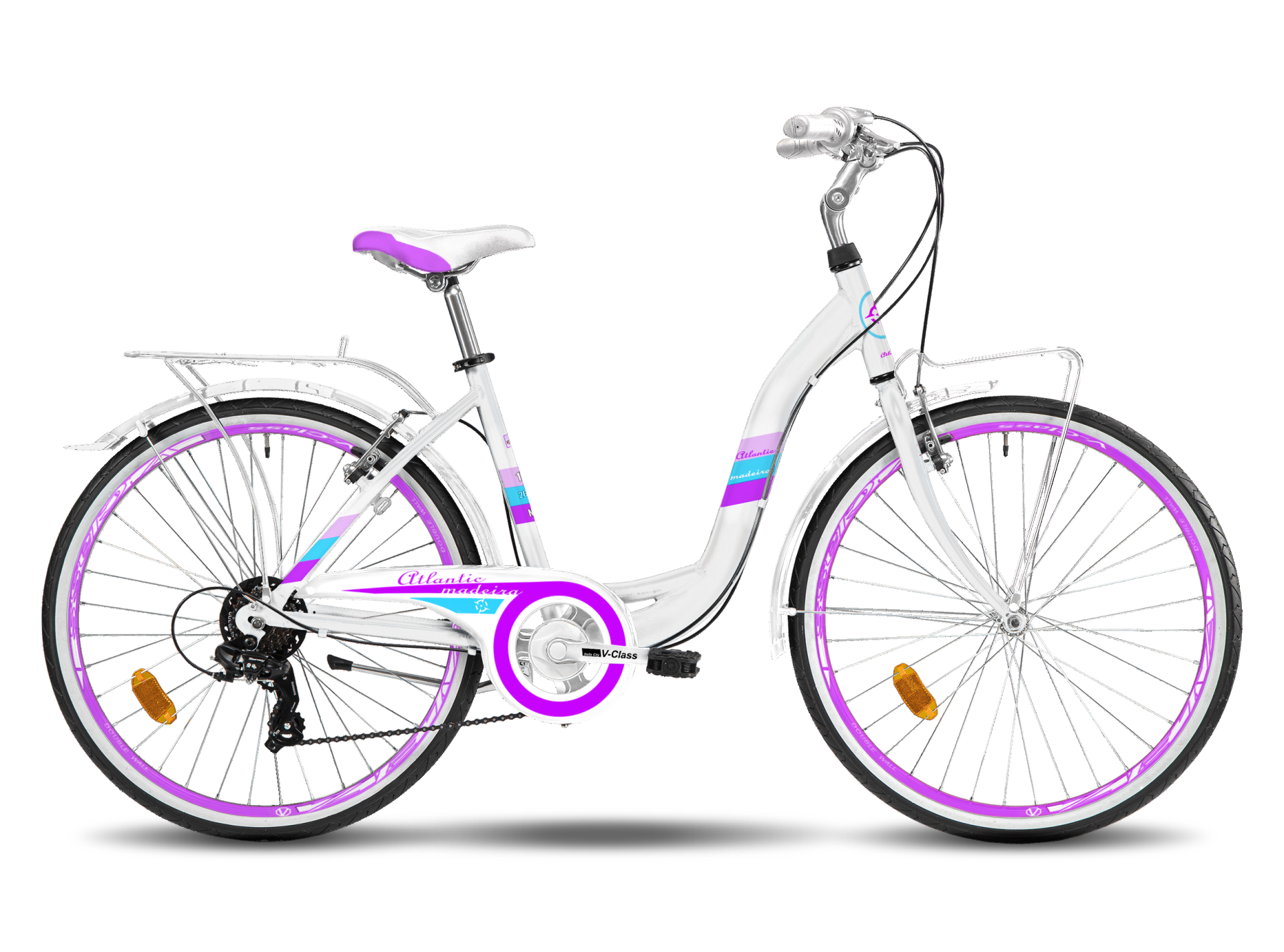

The Atlantic Madeira CS city bike is designed with a strong and reliable steel frame that resists moisture and corrosion. The central, main tube of the bike's profile is significantly lowered, which creates optimal space for easy landing, comfortable pedaling and free jumping off without any snags and risks of injury.


The simple and effective V-brake system with aluminum handlebars responds quickly to the rider's forces by pinching the front and rear wheel rims to control driving dynamics and safety.


The 26'' wheels are good for acceleration and high-speed modes, and the protective fenders will not only prevent you from getting wet, but will also increase the safety of driving in the dark.


The adjustable saddle height allows the cyclist to find the most comfortable, level position.


Rear and front steel carriers pre-installed on the bike will easily help you transport the necessary cargo, food, and personal belongings.ο»Ώο»Ώο»Ώο»Ώο»Ώο»Ώ

High-quality and undemanding bike components are efficient in work and have a long service life.

Specification

Frame Atlantic Monotube Type, steel
Fork V-Class Rigid City, steel
Shifters Shimano Tourney SL-RV200, 1x7 speed
Front derailleur -
Rear derailleur Shimano Tourney RD-TZ500-GS, 7 speed
Crankset V-Class Delta City, 34T, steel
Chain JX 50
Bottom bracket Sealed cartridge
Brakes V-Class v-brake, alloy
Brake Levers V-Class, alloy
Hub (front) V-Class Sigma, quick release, alloy
Hub (rear) V-Class Sigma, quick release, alloy
Handlebar V-Class Delta, steel
Stem V-Class Sigma, alloy
Seatpost V-Class Sigma, alloy
Saddle V-Class Comfort
Headset Atlantic M1 Headset
Rims V-Class Sigma, double wall, alloy
Spokes Stainless Steel
Tires Compass MTB, 26"x2.10"
Pedals V-Class FP-803, ball bearings
Grips V-Class Pro MTB
Front carrier V-Class City, steel
Rear carrier V-Class City, steel
Mudguards V-Class City, steel
Approx weights in kg 15,3
Color White / Blue / Pink
Frame size M6

* We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, and materials.

Size chart

Geometry

M6
A bb center to top of seattube 440
B top tube parallel 555
B* top tube horizontal 580
C chainstay 430
D headtube length 160
E head angle 71 °
F seat angle 73 °
H bb offset 45
K wheelbase 1061
G seatpost diameter 31,8
